SMWA slim

Ultra slim flail for orchards and vineyards for 40-90 HP

  • Ultra low, and slim belt drive
  • Mulches grass and prunings up to 5 cm [2"] Ø
  • Linear hydraulic side shift 27 cm [10,6"]
The ultra low, aerodynamic mulching mower
trinciatrice molto sottile a basso profilo
Mulcht Gras und Reisig bis zu 5 cm Ø
Trituradoras a transmisión ultra estrecha y de perfil bajo
Ultra-schmal und niedrig gebaut Mulcht Gras und Reisig bis zu 5 cm Ø
Ultra-schmal und niedrig gebaut Mulcht Gras und Reisig bis zu 5 cm Ø
Ultra stretta e bassa Trincia erba e ramaglia fino a 5 cm Ø
Ultra low, and slim belt drive Mulches grass and prunings up to 5 cm [2
Ultra estrecha y baja Tritura hierba y restos de poda de hasta 5 cm Ø

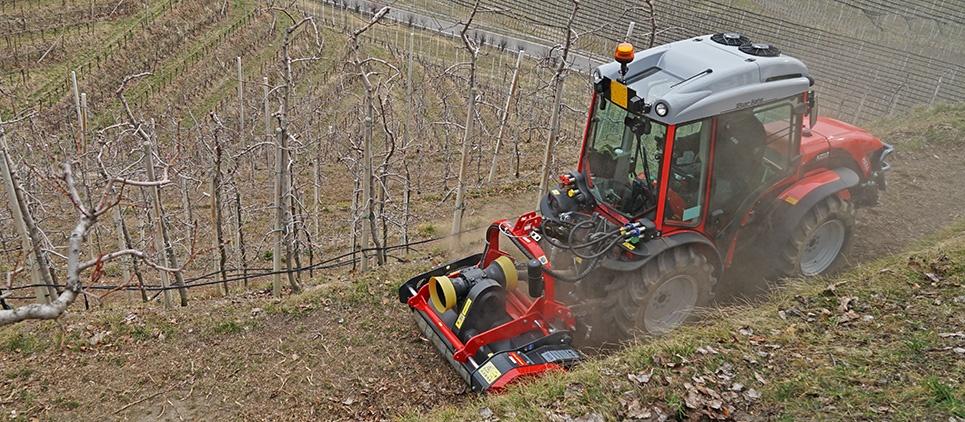

The SMWA slim is a flail mulcher for tractors from 40 to 90 HP. It is characterized by an ultra slim belt drive with a low profile, which allows for high precision mulching in orchard and vineyard rows. The slim and low profile reduces the risk of touching and damaging the vines, trees, or branches. The narrow transmission is achieved by a combination of 3 plus 2 high power belts. This implement is reversible and features a linear hydraulic side shift.

The strong rotor with the universal SMW flails distributed in a helical pattern ensures high cutting quality and evenly distributed power absorption. The casing of the SMWA rev cf is made of high-tensile steel and features two rows of counter cutters, which ensure a perfect mulching result. The adjustable roller with double tapered roller bearings guarantees a long service life and low maintenance costs. The roller is positioned close to the rotor to improve mowing on uneven ground and to prevent scalping. By means of the adjustable M-FLAP, the degree of mulching can be set to match the conditions so that the implement will always work at high efficiency and speed.

Available working width: 135, 145, 155, 175, 200, 225 cm [53", 57", 61", 69", 79", 89"].
SMWA slim - STANDARD VERSION
  • Mulches grass and prunings up to 5 cm [2”] Ø
  • Working speed 3-10 km/h
  • Chassis made of high tensile steel S420
  • ISO 3-point linkage cat. 1&2 reversible - Front|Rear
  • Linear hydraulic side shift 27 cm [11”]
  • Gearbox 540 rpm with freewheel and through shaft
  • Input shaft 1 3/8” Z=6
  • Transmission with combination of 3 and 2 high power belts - low belt protection
  • Support roller, adjustable in height, reinforced bearings and roller 4D-Roller
  • Adjustable rear hood M-FLAP to set the degree of mulching, with rubber protection
  • Front protection: metal flaps
  • Rotor wall thickness, mm: ≤ 155: 10 · 175-200: 12,5 · 225: 16
  • Triple helical rotor HELIX ROTOR with SMW flails
  • 2 rows of tempered COUNTER CUTTERS (≥175=1 row)
  • Colors: charcoal RAL7021| red RAL3020
OPTIONS
  • PTO drive shaft
  • Gearbox 1000 rpm
  • Gearbox with automatic inverter and double freewheel for reversible tractors
  • Additional 3-point linkage
  • Front attachment
  • Front protection with chains
  • Roller scraper
  • Rake hood less rakes
  • Rake hood complete with rakes
  • Chevrons
Under canopy equipment:
  • X-FAST single - coupling system for under-canopy equipment
  • XTI - tiny flail mulcher with option XPN - weed comb
  • XSC - rotary mower - outrigger
  • XSA - cultivator
  • XSP - shoot remover
  • XAN - sweeper
  • XID - herbicide spraying system

S420
S420
LOW PROFILE
LOW PROFILE
FR
FR
4D ROLLER
4D ROLLER
M-FLAP
M-FLAP
COUNTER CUTTERS
COUNTER CUTTERS
HELIX
HELIX
